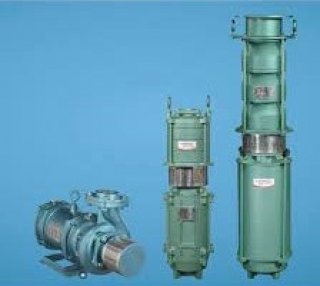

5HP KARVEL ULTRA HEAD ECONOMIC HOWS PUMPSET
₹ 23,195.00
KEY FEATURES
Quick assembly and disassembly
Cost effective version with copper rotors for low voltage operation
0.5 HP to 120 HP pumpsets
Robustly built pumpsets
Wide voltage band operation
The stator winding is water cooled and is made from poly-wrapped copper wire
The motor houses water lubricated journal bearings to take up the radial loads
A water lubricated thrust bearing is provided to take up the thrust load generated by the rotating impeller
A water lubricated counter thrust bearing is provided to limit the movement of the shaft when the Openwell Submersible is switched OFF
Adequate motor surface area is provided for effective cooling
The water filled motor is provided with single lip oil seals to prevent the pumped med
Product description
Model | KH50PH - R |
Power Range | 3.7 kW / 5.0 HP |
Voltage range | Three phase 380 - 440 V |
Connection | Star(DOL) |
Head Range | 19 – 40 m |
Flow range | 680 - 230 lpm |
Suction & Delivery size | 65 x 50 mm |
Warranty | 2 Yrs |
Volute | CI-FG-200 |
Impeller | CI-FG-200 |
Motor Base | CI-FG-200 |
Front Housing | CI-FG-200 |
Motor Body | CI-FG-180 with SI Stamping |
Winding | Insulated copper |
Journel bushes | LTB-4 |
Rear housing | CI-FG-200 |
Rotor with shaft | Copper Rotor with SS 420 Shaft |
Thrust bearing | Carbon / SS 420 |
